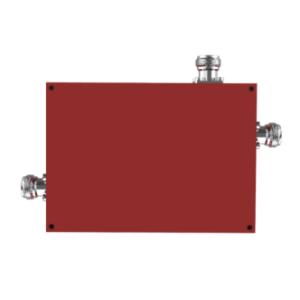

150-1000MHz N Female Directional Coupler

Brand Name : Vinncom

Model Number : VN-DC-15001-ONx-xxx

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Connector Type : N Female

Frequency Range : 150-1000MHz

Operating Temperature : -40°C~+80°C

VSWR : ≤1.30

Contact Now

150-1000MHz N Female Directional Coupler

  • Good returen loss
  • High isolation
  • Good VSWR

VN-DC-15001-ONx-xxx.doc.pdf

Part Number VN-DC-15001-ONx-xxx
Operating Frequency ( MHz ) 150-1000MHz
Impedance ( Ohm ) 50
VSWR ≤1.30
Coupling (dB)@x 5 6 7 10 15 20 25 30 40
Tolerance ± 1.5 ± 1.5 ± 1.6 ± 1.7 ± 1.7 ± 1.7 ± 2.0 ± 2.0 ± 2.5
Insertion Loss (dB) ≤2.15 ≤1.8 ≤1.5 ≤1.2 ≤0.5 ≤.0.4 ≤0.4 ≤0.3 ≤0.3
Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥33 ≥38 ≥43 ≥45 ≥52
IM3 (dBc @ 2×43dBm)@xxx -150
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt) max) 300
Peak Power 1200 (Watt, max)
Dimension (mm) 165×100×23
Net Weight (g) 870± 5%
Packing Dimensions (mm) 230×135×35
Packing Carton Size (mm) 470×280×115
ROHS Compliance Yes

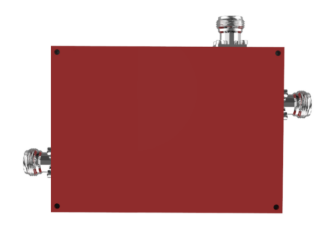

150-1000MHz N Female Directional Coupler150-1000MHz N Female Directional Coupler
