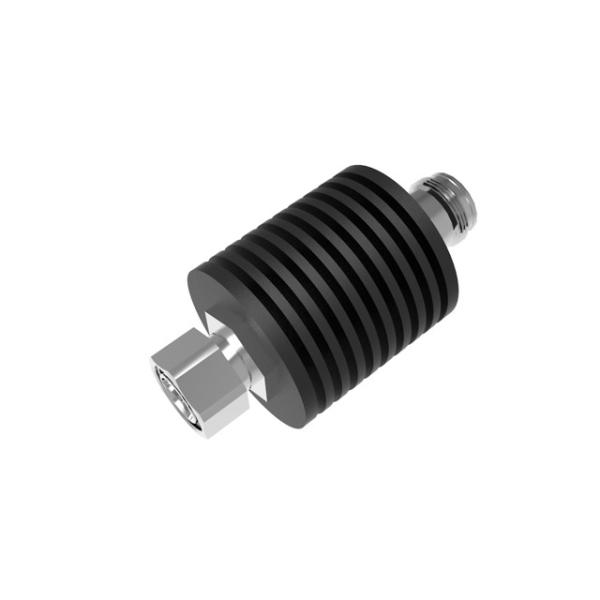

DC-4000MHz 20W Attenuator 4.3-10 Male To 4.3-10 Female

  • 1
  • 2
  • 3

Brand Name : Vinncom

Model Number : VN-AT-4G-20W-IPX

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Operating Frequency ( MHz ) : DC-4000

VSWR : ≤1.25

Interface : 4.3-10 Male - 4.3-10 Female

Application : Indoor

Contact Now

DC-4000MHz 20W Attenuator 4.3-10 Male To 4.3-10 FemaleDC-4000MHz 20W Attenuator 4.3-10 Male To 4.3-10 Female

  • High attenuation accuracy
  • High indicator stability
  • Low standing wave

VN-AT-4G-20W-IPX.pdf

Part Number VN-AT-4G-20W-IPX
Operating Frequency ( MHz ) DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Attenuation(dB) 1 2 3 5 6 10 15
Attenuation Tolerance(dB) ±0.4 ±0.4 ±0.5 ±0.5 ±0.6 ±0.8 ±0.9
Interface 4.3-10 Male - 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Application Indoor
Handling Power (Watt, max) 20
Dimension (mm)(L*W*H, excl connector) Φ47X50
Packing Dimensions (mm,L*W*H) 65X65X105
Packing Carton Size (mm,L*W*H) 350X350X225
ROHS Compliance Yes

DC-4000MHz 20W Attenuator 4.3-10 Male To 4.3-10 FemaleDC-4000MHz 20W Attenuator 4.3-10 Male To 4.3-10 Female
