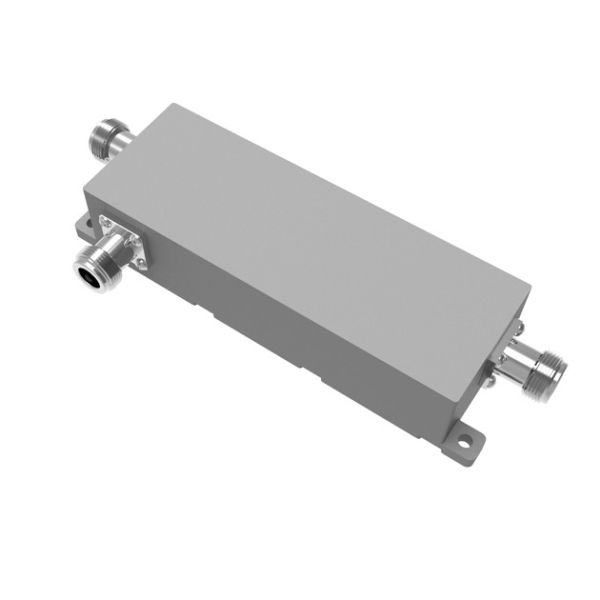

350-520MHz N Female Directional Coupler Enhance Your RF Network

  • 1
  • 2
  • 3

Brand Name : Vinncom

Model Number : VN-DC-03552-ONx

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Connector Type : N Female

Frequency Range : 350-520MHz

Impedance : 50Ω

Operating Temperature : -40°C~+80°C

VSWR : ≤1.25

Contact Now

350-520MHz N Female Directional Coupler

  • Good returen loss
  • High isolation
  • Good VSWR at all ports

VN-DC-03552-ONx.pdf

Part Number VN-DC-03552-ONx
Operating Frequency ( MHz ) 350-520MHz
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 6 10 15 20 30
Tolerance ± 0.6 ± 0.7 ± 0.8 ± 1.0 ± 1.2 ± 1.2
Insertion Loss (dB) ≤2.0 ≤1.9 ≤1.0 ≤.0.5 ≤0.3 ≤0.2
Isolation (dB) ≥25 ≥26 ≥30 ≥35 ≥40 ≥45
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt) max) 300
Peak Power 1200 (Watt, max)
Dimension (mm) 160×40×21
Net Weight (g) TBD
ROHS Compliance Yes

350-520MHz N Female Directional Coupler Enhance Your RF Network350-520MHz N Female Directional Coupler Enhance Your RF Network
