110-1000MHz 3Way N Female Wilkinson Splitter

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 1101000MHz 3Way N Female Wilkinson Splitter
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PD-0110-ON3

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Connector Type : N Female

Frequency Range : 110-1000MHz

Operating Temperature : -40°C~+80°C

VSWR : ≤1.3

Contact Now

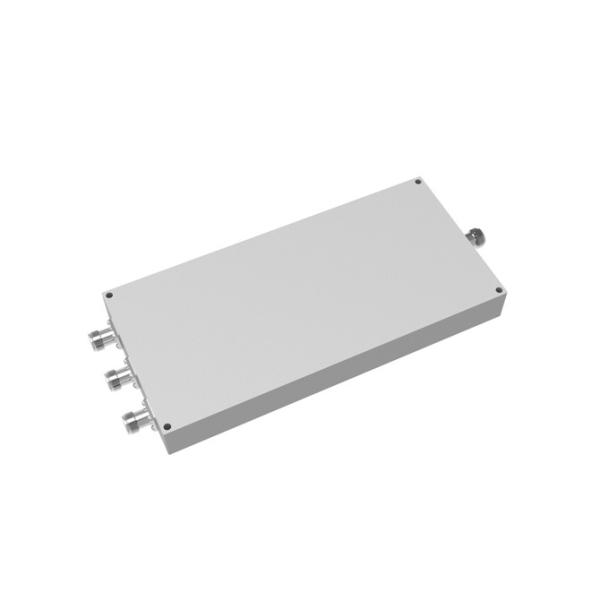

110-1000MHz 3Way N Female Wilkinson Splitter

Part Number	VN-PD-0110-ON3
Operating Frequency ( MHz )	110-1000
Impedance ( Ohm )	50
VSWR	≤1.30
Isolation(dB)	20
Split Loss (dB)	≤5.8
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	50
Peak Power (Watt, max)	200

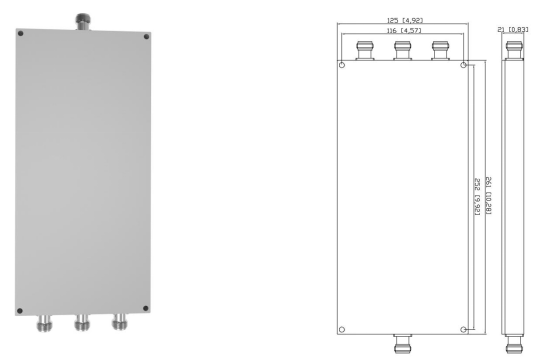

Dimension (mm)(L×W×H, excl connector)	125×261×21

110-1000MHz 3Way N Female Wilkinson Splitter

Product Tags:

110-1000MHz Wilkinson Splitter
