ODM Variable RF Attenuator ROHS IP65 3800MHz

Name: ODM Variable RF Attenuator ROHS IP65 3800MHz
Brand: Vinncom
Price: 1 USD

Quality ODM Variable RF Attenuator ROHS IP65 3800MHz for sale

Brand Name : Vinncom

Model Number : VN-LPAT-0738-100W-ONx

Certification : ROHS ISO9000

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, T/T

Supply Ability : 100pcs per day

Connector : N male-N female

Frequency : 617-3800 MHz ,698-3800MHz

Design : Coupler+Cable rolling

PIM : -165dbc @ 43dbm*2

Color : Black or Customized

Contact Now

617-3800MHz 698-3800MHz 100W -155dbc 160dbc N Male To N Female Low PIM RF Attenuator

Low PIM up to -155/-163dBc@43dBm*2
Wide band frequency
Good VSWR

Part Number	VN-LPAT-0738-100W-ONx
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Attenuation(dB)	5 ± 0.8	6 ± 0.8	7 ± 0.9	10 ± 1.0	15 ± 1	20 ± 1.2	30 ± 1.5
IM3 (dBc @2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Male To N Female
Handling Power (Watt, max)	100
Peak Power (Watt, max)	800
Dimension (mm)	220 × 170 × 68 (excludes connector)
ROHS Compliance	Yes

ODM Variable RF Attenuator ROHS IP65 3800MHz

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.

Product Tags:

3800MHz variable attenuator

3800MHz variable rf attenuator

ODM variable rf attenuator

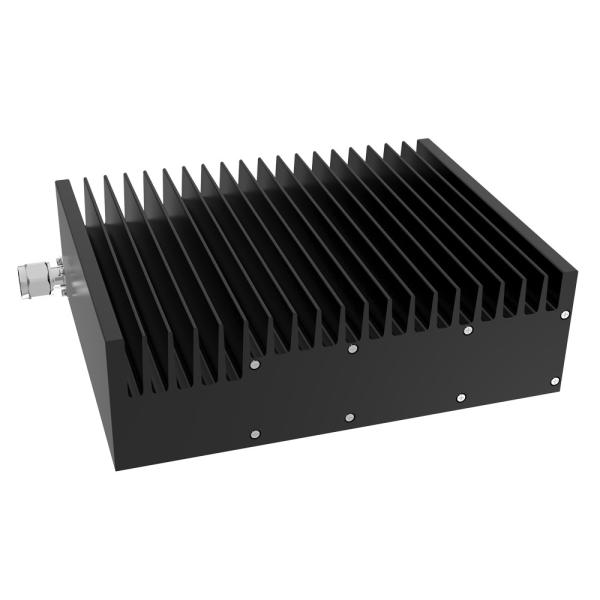

ODM Variable RF Attenuator ROHS IP65 3800MHz Images
