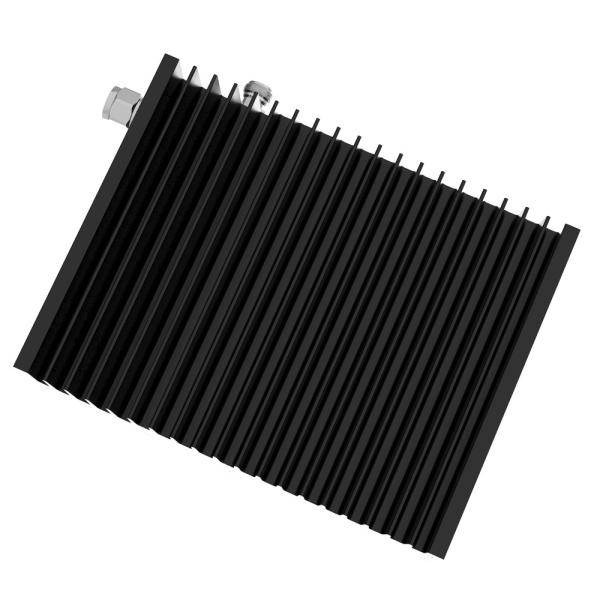

ROHS Certificated Adjustable RF Signal Attenuator 50W IP65

Brand Name : Vinncom

Model Number : VN-LPAT-05560-50W-ONx

Certification : ROHS ISO9000

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, T/T

Supply Ability : 100pcs per day

Connector : N male-N female

Frequency : 600-6000 MHz ,550-6000MHz

Design : Coupler+Cable rolling

PIM : -165dbc @ 43dbm*2

Color : Black or Customized

Customized : Acceptable

Contact Now

600-6000MHz 550-6000MHz N Male To N Female Low PIM -155dbc 160dbc 50W RF Attenuator

  • Good VSWR
  • Wide band frequency
  • High attenuation accuracy

Part Number VN-LPAT-05560-50W-ONx
Operating Frequency ( MHz ) 550-6000 600-6000
Impedance ( Ohm ) 50
VSWR ≤1.38
Attenuation (dB) 5 ± 0.9 6 ± 0.9 7 ± 0.9 10 ± 1.1 15 ± 1.5 20 ± 1.5
IM3 (dBc @ 2×43dBm) -153 / -163
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male To N Female
Handling Power (Watt, max) 50
Peak Power (Watt, max) 500
Dimension (mm) (excludes connector) 220× 170× 68
ROHS Compliance Yes

ROHS Certificated Adjustable RF Signal Attenuator 50W IP65

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
